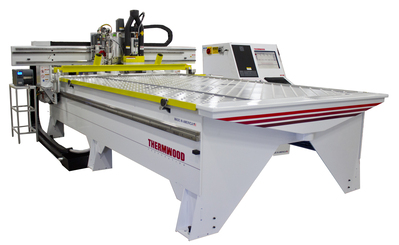

Thermwood AutoProcessor - Three Axis Heavy-Duty, High-Speed, Automatic Load/Unload CNC Router

The Thermwood AutoProcessor is a high-speed, automatic load/unload, heavy-duty three-axis CNC routing system for nested based feed through machining.  Available in a variety of machine table sizes, it is used in nested based production of cabinets, closets and custom furniture.

How it Works:

With each cycle, the machine first labels the sheet, positions the sheet on the table, machines the material, off-loads the finished parts and then repeats the process. Dust collection during this process keeps scrap and debris to a minimum.Labels help the operator to quickly sort the parts, and Assembly Marks help final assembly happen quickly and easily.

---

Features of the Thermwood AutoProcessor:

• Various Table Sizes Available (5'x10', 5'x12' and 7''x12')
• Automatic Load/Unload System (6000 lb automatic lift table for loading and 7'x12' steel offload/work table)
• 12HP (3,000-24,000 RPM) Spindle
• Universal Vacuum 1 or 2 Zone
• Rake w/Integrated Dust Collection
• Rapid Speed:  4100 Inches per minute
• Siemens Intelligent Servo Drives
• 3D Laser Compensated Axis Alignment
• 10 Position Rotary Automatic Changer
• Automatic Pop-Up Pins
• Automatic Tool Length Sensor
• Automatic Labeling System

• QCore SuperControl
• Machine Training and Installation
• Free Lifetime Phone/Forum Support

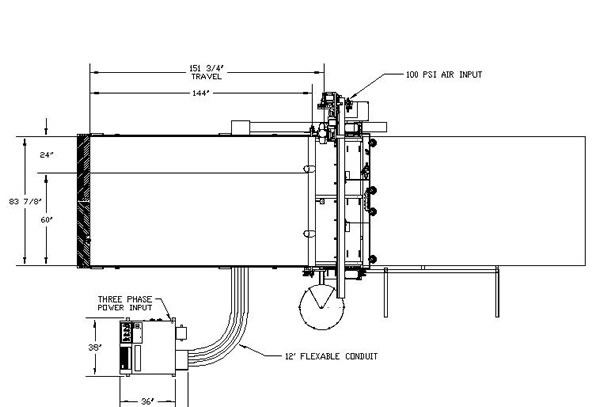

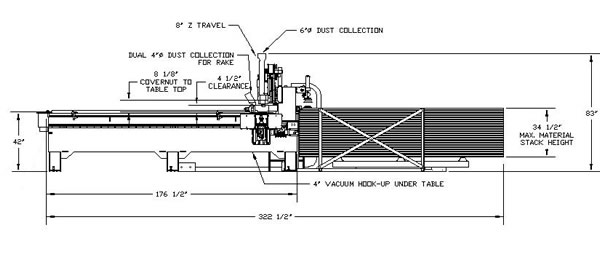

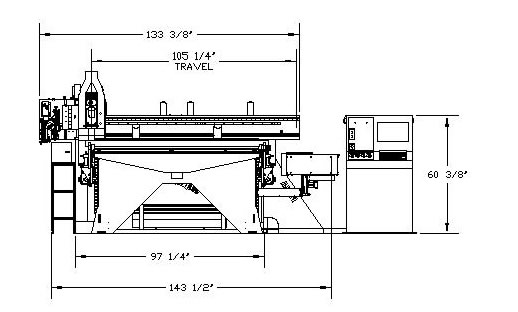

Drawings:

See the AutoProcessor at WMS 2015!

The AutoProcessor 5'x10' (a high-speed, automatic load/unload, heavy-duty CNC routing system for nested based feed through machining) is now on display at WMS 2015 in Toronto, Canada through Saturday, November 7th 2015. Please come and visit us at CNC Automation booth #2013.
