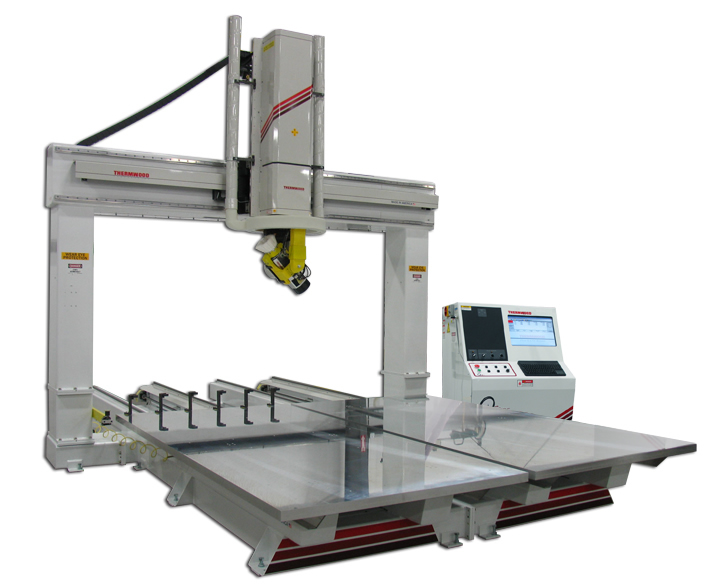

Large Sculptures created on a Thermwood 5 Axis Model 67 CNC Router

Description:

The Model 67 is entry-level fixed-gantry, moving table 5 Axis CNC router that is used for trimming formed parts, patterns or molds using five-axis simultaneous motions.  It is available with a variety of either single or dual moving solid aluminum table sizes.

Features of the Model 67:

  • Single table sizes from 5'x5' to 10'x5' or dual table sizes from 5'x5' to 5'x12'
  • Fixed Gantry
  • Moving Solid Aluminum Table
  • 7.5HP HSD Dual End Spindle (3,000-18,000RPM)
  • 24' Z axis standard (available up to 48" Z axis)
  • QCore SuperControl
  • Full 5 axis simultaneous motions
  • Siemens Intelligent Servo Drives Throughout
  • 3D Laser Compensated Axis Alignment
  • Automatic Tool Length Sensor (optional)
  • Machine Training and Installation
  • Free Lifetime Phone/Forum Support

Videos featuring large sculptures created on a Thermwood Model 67 at John Cox's Creature Workshop:
